epc670 Starter Kit

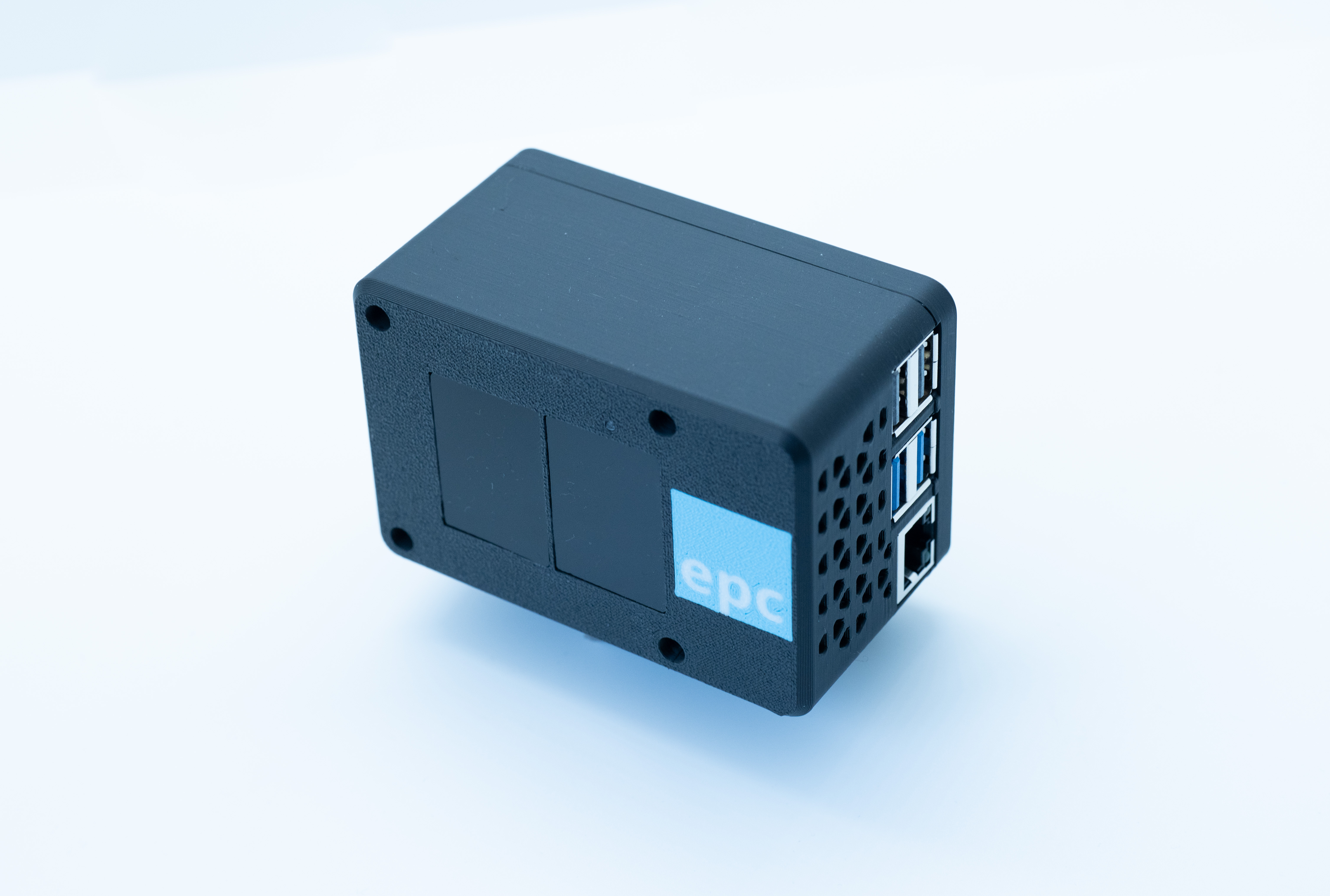

The epc670 Starter Kit refers to a complete camera on system module built around the epc670 Time-of-Flight imager. It consists of the dedicated epc670 ToF HAT+ that integrates the sensor together with all supporting circuitry required for operation, a Raspberry Pi 5 single-board computer, lens/-es and housing.
The Starter Kit is intended for evaluation and prototyping purposes and its sensing range is limited by the integrated illumination and system configuration.
It provides several layers of software to test the chip. Ranging from visual camera control through a UI to advanced programming API.

For more information about the epc670 sensor, please visit epc670.
For more information about the epc670 ToF HAT+, please navigate to the epc670 ToF HAT+ documentation.

• Getting Started – Learn the basics and get up and running quickly

• System Description – Detailed functional description of connectors of the kit

• GUI Description – Detailed description of the graphical user interface of the kit

• Hardware Description – Detailed hardware description of the kit and its accessories

• User Guides – Step-by-step instructions for specific operations
