Hardware Description

The hardware components and dimensions of the epc670 starter kit is described here.

Components Description

Item

Name

Description

1

Housing Screws

M2.5 Housing Screw

2

Lens

Lens 149° FOV, M12x0.5 thread “Wide Field”

3

Illumination LED 1

Infrared LED, λ=940nm, 2θ=150°

4

Illumination LED 2

Infrared LED, λ=940nm, 2θ=80°

5

SD-Card Socket

Socket for the SD-Card containing linux image.

6

RPi Reset Button

Raspberry Pi 5 Reset Button. Press and hold 5 s for reset OR short press for boot up

7

RPi Status LED

Raspberry Pi Activity LED: Green(constant or flickering) - RPi active; Red(Constant) - RPi shut down

8

Mounting Screw

Standard 1/4” camera thread

9

USB-C Power Socket

5V USB-C Power Socket. Use official Raspberry Pi 5 power supply

10/11

μHDMI 0 & 1

μHDMI connector. Output only. Use official Raspberry Pi 5 μHDMI cable.

12

Ethernet Socket

Ethernet Socket to connect to LAN network

13

USB 3.0 Sockets

Generic USB 3.0 Socket

14

USB 2.0 Sockets

Generic USB 2.0 Socket

15

Cooling Air Grating

Air Flow Grating

16

Illumination Window

Illumination path window with NIR-filter.

17

epc670 ToF HAT+ Status LED

epc670 ToF HAT+ Activity LED. Red during active image acqusition.

18

Receiver Window

Optical receiver path window with NIR + 940 nm bandpass filter.

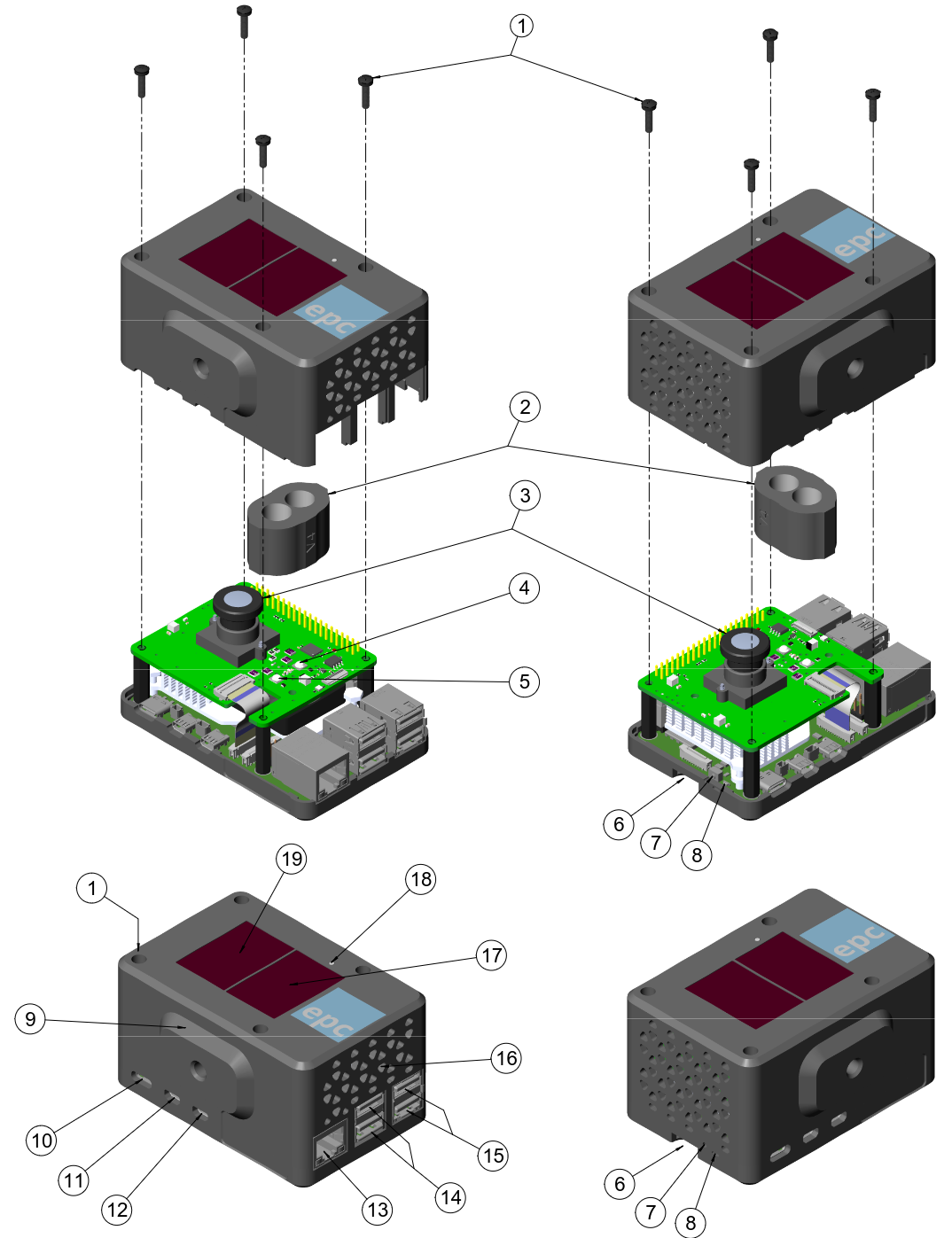

epc670 kit with numbered components

Dimensions

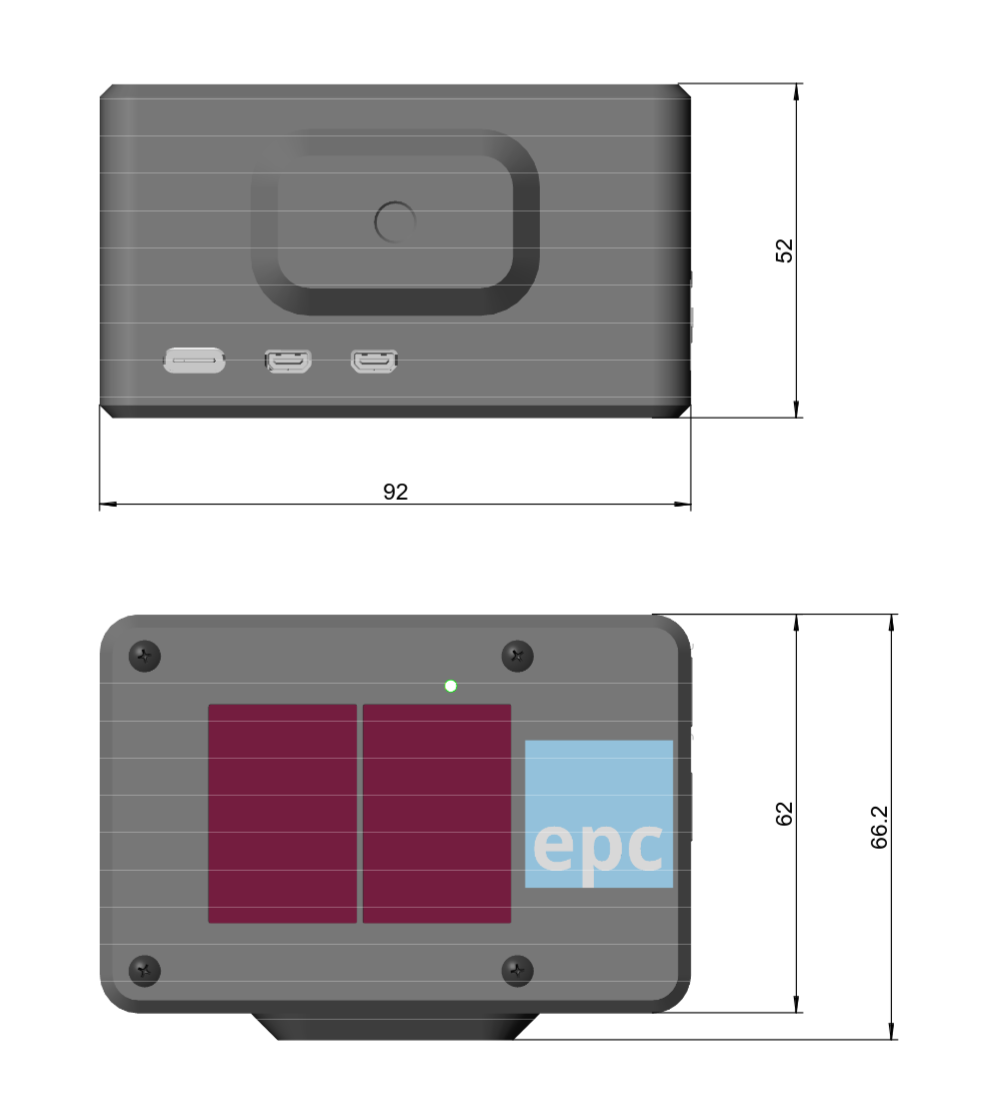

epc670 kit dimensions

Optional Accessories

Accessory

Description

Part Number

USB-C Power Supply 27 W

Official Raspberry Pi 5 27W power supply

P101 157(EU) / P101 162(US)

μHDMI to HDMI Cable

μHDMI to HDMI cable, 2m, male-male, black

P101 185

Camera Tripod

Camera tripod, 1⁄4” , 10 … 27 cm height

P100 283

These epc670 Starter Kit compatible accessories should be ordered separately.
